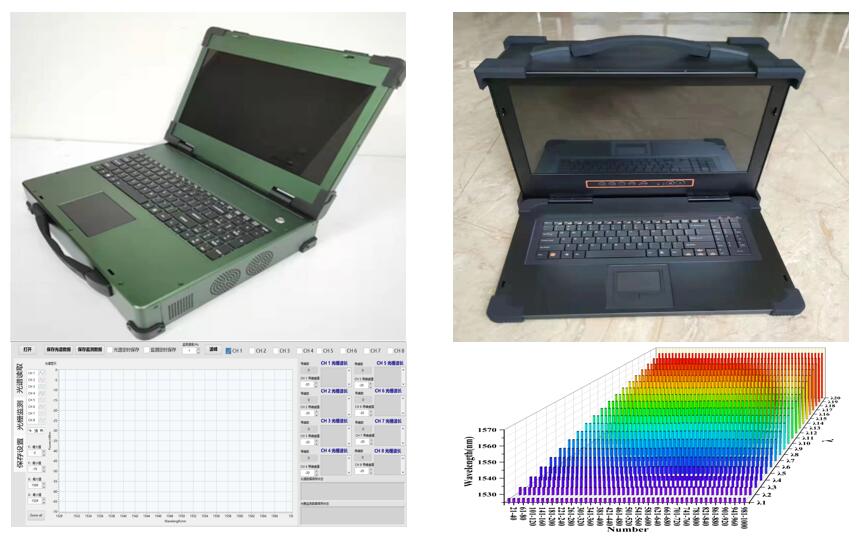

Scan series fiber Bragg grating demodulation equipment has the characteristics of high demodulation precision, high stability and high integration, and is suitable for fiber Bragg grating, FP and other sensors and their arrays to perform spectral demodulation. Combined with basic functional software, it can realize the monitoring and data preservation of spectrum, wavelength/trough and other parameters, support secondary development, and meet the needs of laboratory scientific research and realize the real-time monitoring of temperature, strain and other physical parameters with single or even thousands of points of high precision in engineering applications.

Scan-FBG：

Operating wavelength range: 1530~1570nm

Number of channels: 4,8,16

Scanning frequency: 100,1000 Hz

Measurement resolution: 1pm

Wavelength repeatability: < 10pm

Dynamic range: > 40dB

Communication port: RJ45

Support for secondary development

With the software, it can realize the visual monitoring of the spectrum, the timing acquisition of the spectrum, wave crest/trough and other data

Scan-FBGArray：

Operating wavelength range: 1520~1570nm

Number of channels: 1,2

All the same wavelength grating demodulation spatial resolution: 2m

Measurement resolution: 5pm

Wavelength repeatability: < 25pm

Support for secondary development

It is suitable for the exact demodulation of all wavelength coded grating arrays and mixed wavelength coded grating arrays
