Overview

The Lightwaves LT 906 Series Vibration Sensor are widely used in construction services, pulp and paper, mining, metals, public utilities, automobiles, water, and pharmaceuticals. Data acquisition board LT 906-MB, based on ARM+Linux platform, operating frequency 72MHz, sampling frequency 2MHz～10MHz, 12-bit half ADC analog-to-digital converter, power supply voltage 24V DC@2A. The interface form is 4-channel analog input (0～5V DC, 0～10V DC, 4～20mA) RS485Modbus communication, TCP/IP communication; and it can connect to analog signal output of acceleration, speed, displacement sensors, can calculate speed and displacement data based on acceleration data, features include different sensor parameter settings, data acquisition, filtering, noise reduction, signal modulation and demodulation, calibration, data storage, etc.

Features

l Intrinsically safe

l Output through three axies

l Used for data collectors

l Customizable features

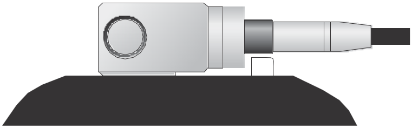

                                                         Typical Frequency Response                                                                                                                             Diagram of Sensor Detection

Technical Parameters

Applications

l Oil and gas pipelines

l Valves and fans

l Motors and pumps

l Compressors and centrifuges

l Air handlers and gearboxes

l Rollers and dryers

l Cooling systems and vacuum cleaners

l Spindles and machine tools
