Overview
The Lightwaves LT 905 Downhole Sand monitor features a new tool architecture, integrating advanced sensor design, signal processing technology, and analytical algorithms to accurately detect downhole sand ingress points and assess sand production rates in different flow areas. This monitoring device can seamlessly connect with production service platform, advancing traditional logging techniques into a new phase: sand multi-phase production logging. The compact tool is compatible with cable and tractor delivery systems, suitable for various operational environments.
Types

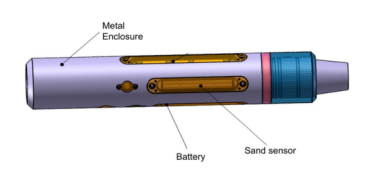

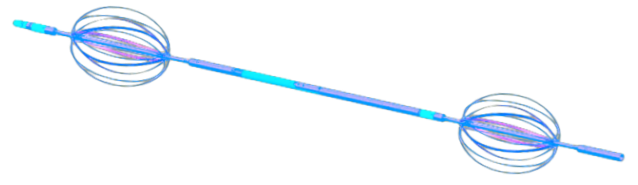

Cage Type Sand Monitor Tube Type Sand Monitor
Features
l Robust, real-time, high sensitivity measurement
l Can detect individual particles as small as 25μm in diameter
l Sensing elements are unaffected by background noise from tool movement, underground disturbances, fluid, or gas jetting
l Intelligent threshold technology for quality monitoring of counting results and detection rates
Principle
It is mainly based on the principle of passive ultrasonic waves, distinguishing different particles by analyzing their size and the amplitude of the sound signal. This algorithm applies intelligent threshold technology to conduct quality monitoring of counting results and detection rates, and provides confidence assessment of production rates. Compared with the conventional measurements of filters or acoustic detection sensors applied to the surface, the LT 905 can provide more accurate measurement results. The sand particle counting data can be further transformed into sand product information such as the sand product volume and sand product rate.

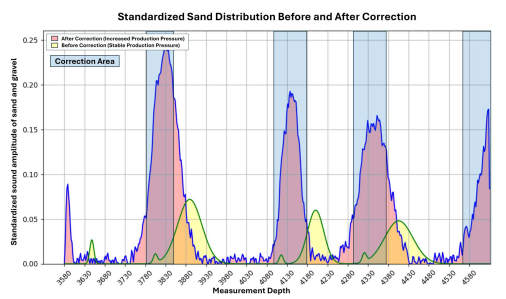

Standardized Sand Distribution Curves Before and After Correction
Technical Parameters
LT 905 Downhole Sand Monitor | |||
Output： | Sand particle count/s, g/s, sand area (customizable) | ||
Sampling Rate： | 6s integration time: 275 m/h; 3s integration time: 550 m/h | ||
Vertical Res. | 1,500 times/s, 0.5 m | ||
Sensitivity： | 25μm (liquid phase)；15μm (gas phase) | ||
Particle Sizes： | 15μm～100μm, 100μm～200μm, 200μm～300μm, configurable with software | ||
Accuracy： | 5%～15% | ||
Compatibility： | PS production service platform; can be used with tractors | ||
Special Applications： | Can be used in acidic environments | ||
Temperature： | 180℃ | ||
Pressure： | 103MPa | ||
Min. Aperture： | 4.65 cm | Length： | 112 cm |
Outer Diameter： | 4.28 cm | Weight： | 8.4 kg |
Applications
l Quantification of zoned sand layers
l Geomechanical model calibration
l On- site well completion planning
l Monitoring of proppants during flow back
l Wellbore intervention and repair
l Boiler feed water/steam pipeline
l Secondary well completion design
l Fracture completion
