Features

—  Intrinsically safe

—  Output through three axies

—  For data collectors

—  Customizable features

Industries

Building services, Pulp and Paper, Mining, Metals, Utilities, Automotive, Water, Pharmaceutical

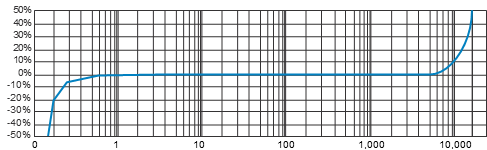

Typical Frequency Response

Applications

Oil and Gas Pipeline, Valves, Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rollers, Dryers, Presses, Cooling, Vacs, Spindles, Machine Tools, Process Equipment

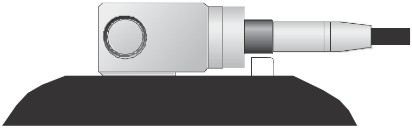

Vibration sensor should be firmly fixed to a flat surface (Spot face surface may be needed to be produced and cable anchored to sensor body)

Intrinsic Safety Certification

Cl I、II、III、Div 1、2 Gr A-D G and F T*

Cl I Zn 0 AEx ia IIC T6...T4 Ga Cl II Zn 20 AEx ia IIIC T135ºC Da

Cl II  20 AEx ia IIIB T102°C...T131°C

Ex ia IIIC T135ºC Da Ex ia IIIB T102ºC...T131ºC Da

Optional

Data acquisition board LT 906-MB, based on ARM+Linux platform, operating frequency 72MHz, sampling frequency 2MHz~10MHz, 12-bit half ADC analog-to-digital converter, power supply voltage 24VDC@2A, interfaces: 4-channel analog input (0~5VDC, 0~10VDC, 4~20mA), RS485 Modbus communication, TCP/IP communication; can connect to analog signal output of acceleration, speed, displacement sensors, can calculate speed and displacement data based on acceleration data, features include different sensor parameter settings, data acquisition, filtering, noise reduction, signal modulation and demodulation, calibration, data storage, etc.
